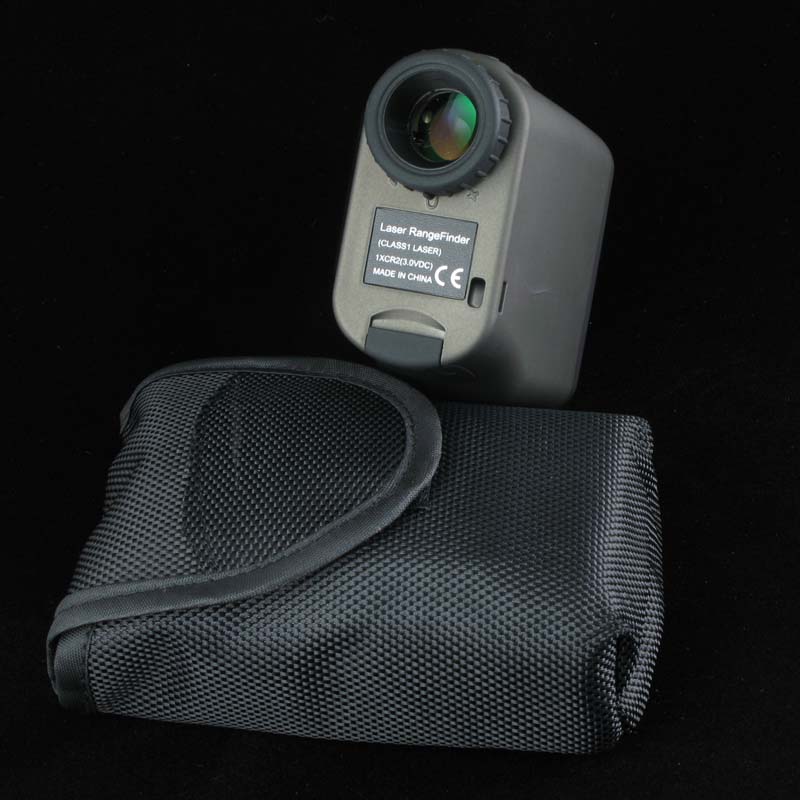

6x Magnification Bow Hunting Rangefinder Measuring Range 4 To 600m
6x21mm LaserWorks Rangefinders Measuring range: 4-600m
Magnification: 6x
This series laser rangefinder can not only help you to measure,
measure, measure angles, but also measure the target area of ??the
rule. Its external color LCD display allows you to easily read data
even in low light conditions. The entire new generation of
"Measurement Star" continues its conventional general product
model, which has been improved in product size. In order to allow
users to have more comfortable hand-operated operations, the
overall size has been increased by 3mm.
First, product characteristics:
Set distance measurement, height measurement, angle measurement,
area measurement in one
Dual read data display with color LCD display
Accuracy up to 0.5 meters
With RS232 universal wired output serial port, save the data
Clear blue screen, suitable for use in dark environments
Sensitive measurement, clear target, simple and stable operation
Laser emission power is small, eye-safe
The use of areas: power line survey and design, electricity safety
inspections, forestry surveys, security police, geological
exploration, field hunting, railway construction survey,
installation survey, high-rise building monitoring, high-speed rail
passenger rail line construction, water conservancy and hydropower
measurement, Water and river surveys, oil pipelines, archaeological
research, mine surveys, railway line selections, and land and
resources surveys.
| Main Features: |
| ● Multi functions rangefinder |
| ● Function Modes:ranging,scaning,fog,flagpole lock,golf distance
correction |
| ● Lightning fast measurements |
| ● Rugged, compact, and lightweight design for rigorous hunts |
| ● Target ranging:4-600m |
| ● Waterproof IPX4 |
| ● LCD Display - with Pin Seeker. Displays exact yardage in scope
and back lit lcd display. |
| Specification | Model | BLT1014 |
| Specification | 6x21mm 600m |
| Magnification | 6x |
| Obj.lens (mm) | 21mm |
| Field Angle | 7.2° |
| Field of View @ 1000m | 126m |
| Field of View @ 1000yds | 378FT |
| Apparent Field of View | 43.2° |
| Exit pupil (mm) | 3.5mm |
| Eye relief (mm) | 16mm |
| Diopter Adjustment | ±5 |
| Dusk Index | 11.22 |
| Relative Brightness | 12.25 |
| Prism System | Roof |
| Prism Glass | Bk7 |
| Focus System | Center |
| Lens Coating | Fully Multi |
| Eyecups | Fold-Down |
| LCD display outer | Yes (LCD:1.8") |
| Display | Inner-vision-field LCD display |
| Battery | CR2(3V) |
| Accuracy | ±1 yd/m |
| Coating | Multicoated |
| Ranging modes | RAIN,RELF,>150 |
| Focusing | Eyepiece |
| Ranging method | Semiconductor laser(harmless to eyes) |
| Waterproof | IPX4 |
| Rain Resistance | Yes |
| Product weight | 0.160 kg |
| Product size (L x W x H) | 10.6 x 3.9 x 6.8 cm |
| Q:1.Can you produce the products with our brand? |
| A: We offer logo laser engraved silk-screen printing or sticker
trade make on product, |
| and customized package is also available. Specific details can be
discussed. |
| Q: 2.How how can I pay the order? |
| A: Payment terms are available by Paypal, T/T or Weston Union.
Specific details can be discussed. |
| Q: 3. How do you control the quality? |
| A: BCI - we have quality control proecess, from procurement,
production, packing to shipment all |
| process are under strict control and are fully traceable. |
